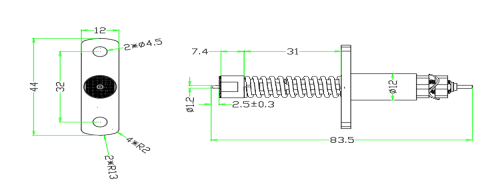

Size: | 83.5*44*12mm |
| Main Material: | Beryllium copper |
| Applicable: | Square case power battery |
| Working Current: | 0～20A |
| Fixture Resistance: | ≤0.5mΩ |
| Temperature: | ≤100℃ |
| Elastic Parameters: | The pressure is 15N when the voltage needle is compressed 1.5 mm,and 45N ± 10% when the current needle is compressed 5mm. |
| Plating: | Nickel plating on the whole surface of the probe, nickel plating on the tip of the current needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um. |
